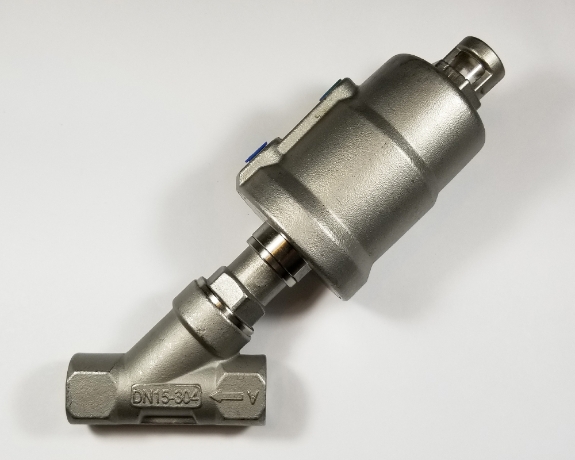

Pipe size: 1/2" NPT
|
Function: On / Off
|
| Activation: Single air driven ( NC)
|
Applicable medium: Water, neutral gas or liquid, ethanol, oil, organic solvents, steam, alkalescent & weak acid solution.
|
Body material: Stainless steel 304
|
Temp. of medium: 14 to 392°F (-10 to +200˚C)
|
| Actuator material: Stainless steel 304
|
Viscidity: Max 600 mm²/s
|
Seat seal: PTFE
|
Installation: Downstream / Upstream
|
| Stem seal: PTFE
|
Controlling medium: Air
|
Piston seal: NBR
|
Controlling pressure: 44-116 PSI (0.3-0.8 MPa)
|
Working pressure: 0-232 PSI (0-1.6 MPa)
|
Valve size: DN15
|
Above diagram is for the reference only, please follow specification.
Valve, 90 degree push-to-connect fitting for 1/4" tube and exhaust plug.
