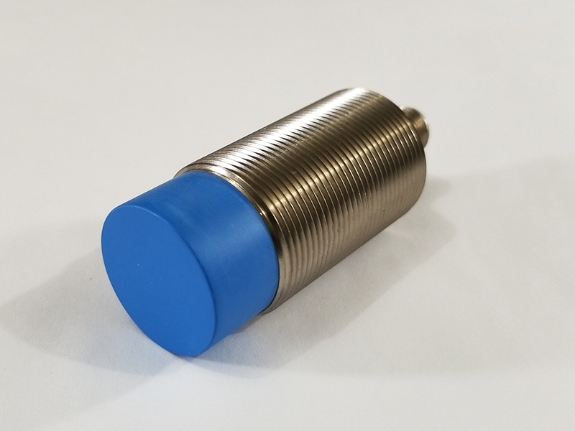

Extended sensing M30 inductive sensor, NPN NO, sn. distance 22mm with M12 connector
Output: NPN NO
|
Output indicator:
Yellow LED
|
Mounting:
Flushed
|
Polarity protection:
Yes
|
Sensing distance: 22mm
|
Dielectric strength: 1000V/AV
50/60Hz 60s
|
Supply voltage: 10-30 VDC
|
Short-circuit
protection:
Yes
|
Switch point drift:
< ±10% Sr
|
Ambient temperature: -25...+70C
|
Load current: <200mA
|
Ambient moisture: 35-95%
|
Voltage drop: <2.5V
|
Protection degree:
IP67
|
Consumption current: <15mA
|
Housing metal:
Nickel-copper
alloy
|
Hysteresis: 1-20%
|
Connection:
M12
Connector
|
Repeat accuracy: <3%
|
Certification: CE, UL
|
Frequency: 150Hz
|
|
