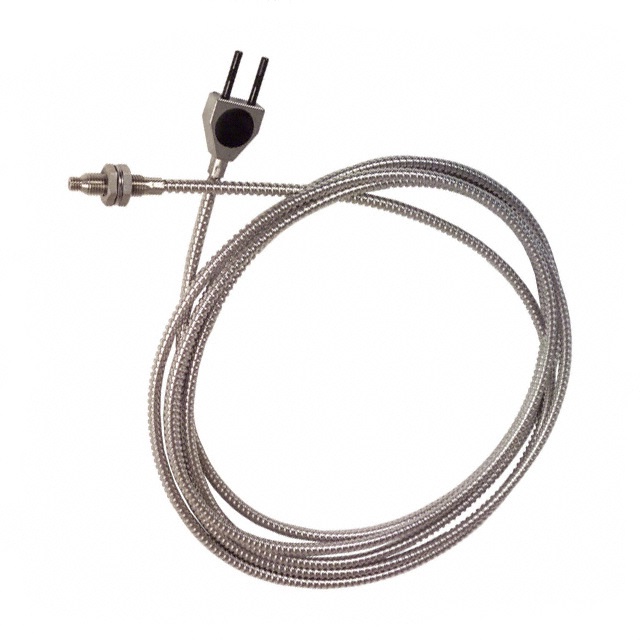

Heat-resistant up to 350 C ( 662 F), reflective fiber cable.
Product outline: Heat-resistant up to 350 CEL, reflective fiber |
Vibration resistance: 10 to 55 Hz1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
Sensing method: Diffuse-reflective |
Shock resistance: 500m/s2 for 3 times each in X, Y, and Z directions |
Shape: Screw-shaped Top view |
Weight (packedstate): Approx. 54 g |
Fiber cable type: Standard |
Material (Sensing head): SUS303 |
Standard Length: 2m |
Material (Fiber sheath): Glass (SUS spiral coating) |
Minimum bending radius: R 25 mm Min. |
Material (Fiber core): Glass |
Free-cut: Impossible |
Material (Clamping nuts): Stainless steel |
Degree of protection: IEC60529: IP67 |
Material (Toothed washer): Stainless steel |
Differential distance: 20% max. of sensing distance |
Tensile strength: 29.4 N Max. |
Ambient temperature: Operating: -60 to 350 CEL (*Ambient temperature is rated for each distance from the top. Refer to outline drawings.)
Storage: -40 to 110 CEL
（with no icing or condensation） |
Clamping torque: 0.98 N.m Max. |
Ambient humidity: Operating: 35 to 85 %RH
Storage: 35 to 95 %RH
（with no icing） |
Accessories: Hexagonal nut, Toothed washer |
