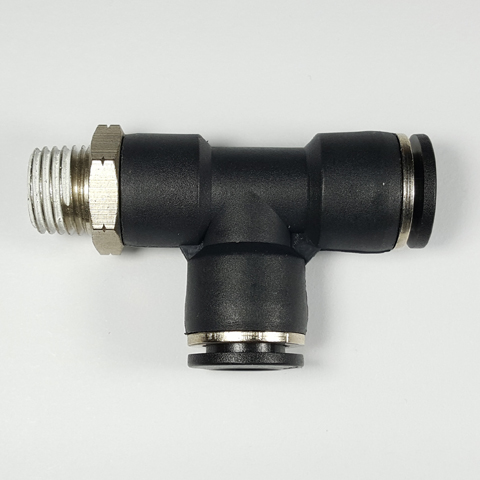

Swivel lateral male tee for 3/8" OD tube to 1/4 NPT thread
Fluid type: Air, vacuum
|
| Operating pressure: 145 PSI, 0~10.2Kgf/cm² ( 0~1.0 MPA )
|
Negative pressure: -750mm Hg ( 10 Torr )
|
Operating temperature range: 32°F~140°F ( 0°C~60°C )
|
| Tubing: Nylon polyamide (PA), polyurethane (PU)
|
