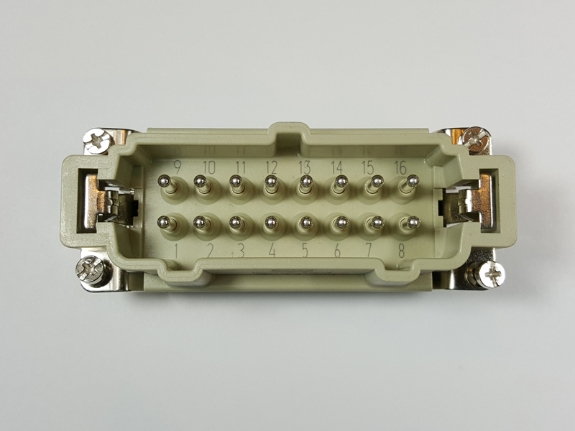

16 pins 16A heavy duty male connector insert. Screw terminal with silver plated copper alloy pins. UL / CSA working voltage 600V
| Specifications: DIN EN 60 664, DIN EN 61 984
|
Mechanical working life (mating cycles): ≥500
|
| Number of contacts:16 |
UL / CSA working voltage: 600V
|
| Working current: 16A
|
Material (contacts): copper alloy
|
| Working voltage: 500V
|
Surface (contacts): silver plated
|
| Pollution degree: 3
|
Contact resistance: ≤1mΩ
|
| Rated impulse voltage: 6KV
|
Terminal type: screw terminal
|
| Insulation resistance: ≥1010Ω |
Wire gauge: AWG 18~14 (1.0~2.5mm²) |
| Material (insert): Polycarbonate
|
Screw terminal tightening: 0.5Nm
|
| L 94 / Flammability acc. to (UL94): VO
|
Stripping length: 7-9mm
|
| Limiting temperatures: -40°F ~ 257°F (-40°C ~ +125°C)
|
Certification: CE, ISO 9001, UL listed: E467743
|
