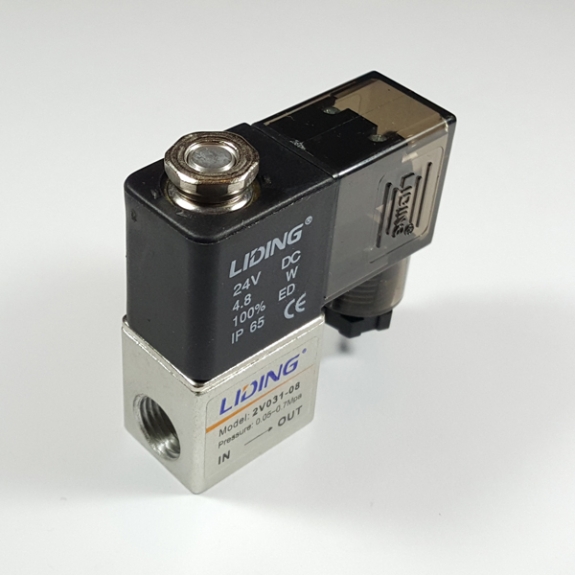

Pneumatic directional control solenoid valve 2 ways 2 positions, normally close, 24VDC coil with LED indication, 1/4 NPT female ports.
Working medium: Air, water, oil
| Power consumption: 6.5 W |
Motion pattern: Guide type
| Protection degree: IP 65
|
Type: NC
| Insulation: F |
Port size: 1/4 NPT female
| Body material: Aluminum
|
| Position: 2 way 2 positions ( 2/2 ) | Wiring form: Connector type |
| Operating temperature: 14~176F° ( -10~80°C ) | Voltage range: ± 10% |
Aperture of flow rate: 10 CFM ( 3.1 mm)
| Operation fluid Viscosity: 20 CST (below)
|
Working pressure: 7.2~101 PSI (0.05~0.7 Mpa)
| Shortest excitation time: 0.05 second
|
Max pressure resistance: 137 PSI ( 0.95 Mpa)
|
|
