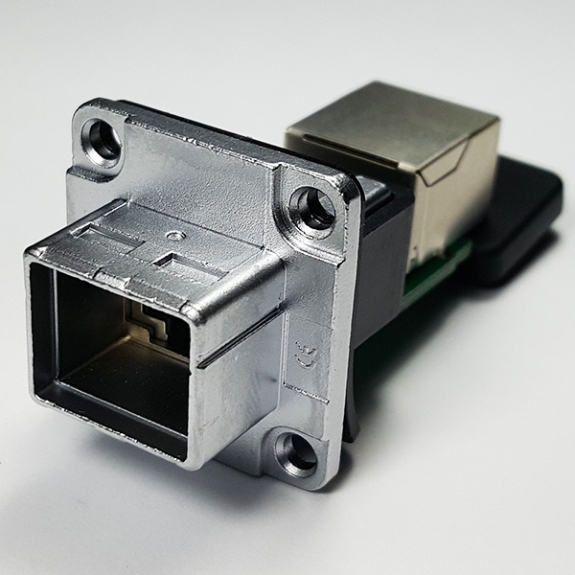

Waterproof / dust-proof industrial metal RJ45 CAT5e socket (both ends).
| Contact diameter × number: 8
|
Connecting mode: Plug / unplug
|
| Rated Current (A): 15A
|
Assembly wire: snap-in
|
| Operating voltage (AC.V.rms): 1000V
|
Housing, the insulating parts: High-performance engineering plastics
|
| Contact resistance: <30mΩ
|
Hardware: Zinc Alloy (pearl hard chrome)
|
| Insulation resistance: ＞500MΩ
|
Pins material: Copper alloy (gold-plated 4U)
|
| Protection level: IP65/IP67
|
Waterproof circle: Silica gel
|
| Working temperature: -40°F~176°F (-40℃～80℃)
|
Flammability rating: UL94-V0
|
Data sheet
