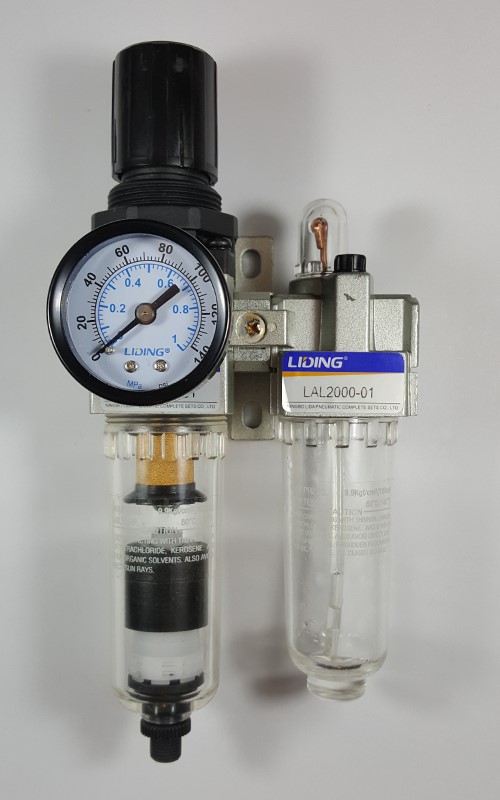

Stacked Filter / Regulator with Lubricator with automatic drain filter.
Rated flow: 17.6 cfm ( 500 l/m )
| Range of adjustment: 7~125 PSI ( 0.05~0.85 Mpa )
|
Port size: 1/8 NPT female
| Recommended oil: ISO VG 32 |
| Filter: 25 µ | Container material: Polycarbonate
|
Highest working pressure: 145 PSI (1.0 Mpa)
| Protective cover: no
|
Ensured pressure resistance: 217 PSI (1.5 Mpa)
| Drain function: Automatic
|
| Operation Temperature range: 41~140°F ( 5~60°C ) | |
