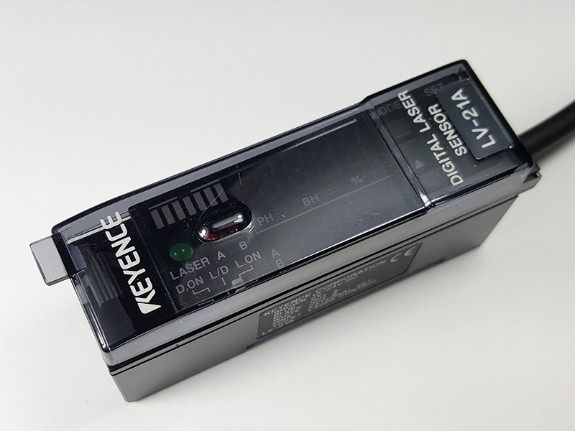

Laser sensor amplifier, NPN NO/NC
Model: LV-21A
|
Power voltage: 12 to 24 VDC ripple (P-P) 10% max.
|
Control output: NPN open-collector x 2 channels, 40 VDC max., max. 100 mA, residual voltage (1.0 V max.)
| Power consumption: 1.5 W max. (125 mA max. for 12 V, 62.5 mA max. for 24 V)
|
Response speed: FINE : 80 µs , TURBO : 500 µs , SUPER , TURBO : 4 ms
|
Operating temperature range: 35 to 85 % RH (No condensation)
|
Number of interference preventive units: FINE : None , TURBO : 2 units , SUPER : 4 units
| Operating ambient humidity:
-10 to 55°C <color>14 to 131°F</color>, No freezingWhen several units are connected, the ambient temperature requirement varies depending on the total number of units connected.
When 2 to 5 units: -10 to +50°C <color>14 to 122°F</color>
When 6 to 7 units: -10 to +45°C <color>14 to 113°F</color>
When connecting several units, be sure to mount the units to a metallic DIN rail. Make sure that the output current does not exceed 20 mA.</foot>
|
Protection circuit: Reversed polarity protection, over-current protection, surge absorber
|
Material: Polycarbonate
|
| Unit expansion: Up to 7 additional expansion units can be installed (8 units including the main unit), | Weight: Approx 120 g |
