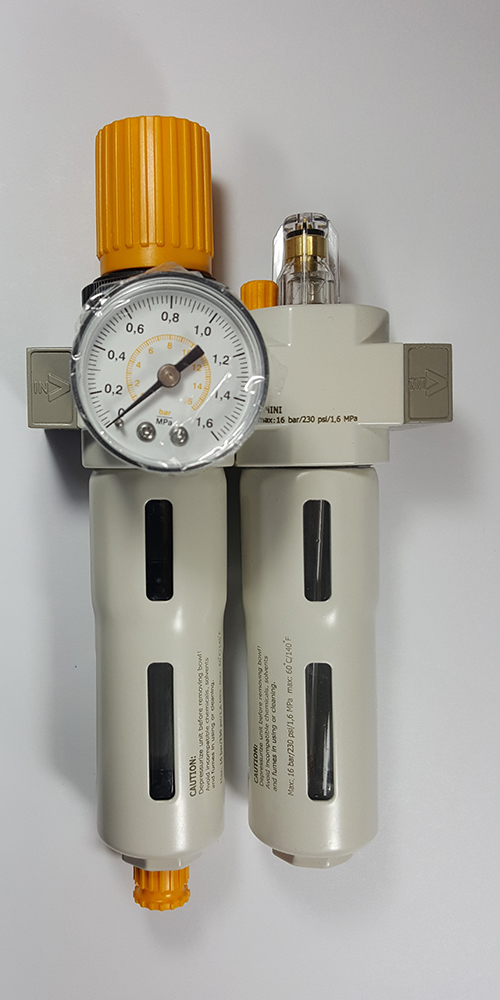

5 micron Filter / Regulator / Lubricator combination unit with semi-automatic drain filter.
Rated flow: 21 cfm ( 600 l/m )
| Housing material: Zinc die-cast
|
Port size: 1/8 NPT female
| Bowl: PC
|
| Filter: 5 µ | Metal bowl guard material: Aluminum alloy
|
| Range of adjustment: 7.2~181 PSI ( 0.05~1.25 Mpa ) | Protective cover: yes
|
| Operation Temperature range: 32~140°F ( 0~60°C ) | Drain function: Semi-Automatic
|
Condensation capacity: 22ml
| |
