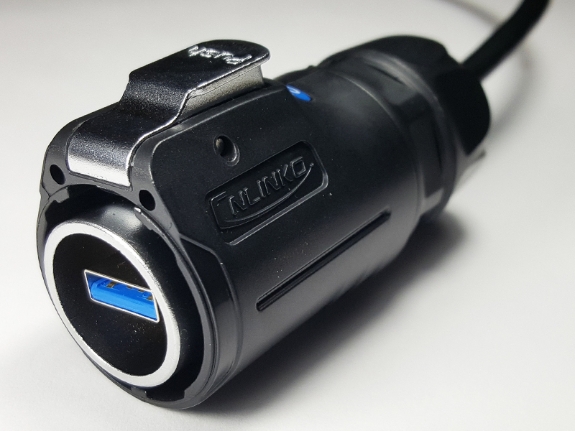

3.0 USB waterproof latching plug with cable.
| Cable specification: 0.15mm²～0.2mm²/26～24 AWG
|
Connecting mode: Plug / unplug (latching) |
| Rated Current (A): 1.5A |
Assembly wire: Housing for USB cable. Comes with 19.6" (0.5m) long USB 3.0 cable ( both ends male connector) |
| Contact resistance: <30mΩ |
Housing, the insulating parts: High-performance engineering plastics |
| Withstanding Voltage (AC.V) 1 minute: 1000V |
Hardware: Zinc Alloy (pearl hard chrome) |
| Insulation resistance: ＞500MΩ |
Pins material: Copper alloy (gold-plated 6U) |
| Protection level: IP65/IP67 |
Waterproof circle: Silica gel |
| Number of pins: 9 pins USB3.0 & 4 pins USB 2.0 |
Flammability rating: UL94-V0 |
| Working temperature: -40°F~176°F (-40℃～80℃) |
|
Data sheet
