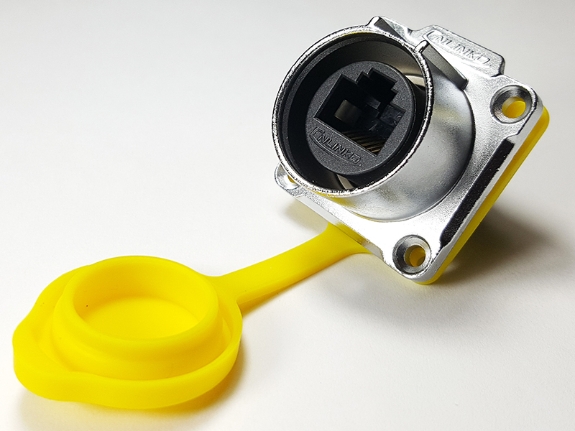

RJ45 latching female socket (both ends).
| Assembly : Both ends female RJ45 |
Working temperature: -40°F~176°F (-40℃～80℃)
|
Number of pins: 8
|
Connecting mode: Plug / unplug (latching)
|
| Rated Current (A): 1.5A |
Housing, the insulating parts: High-performance engineering plastics |
| Contact resistance: <30mΩ |
Hardware: Zinc Alloy (pearl hard chrome) |
| Withstanding Voltage (AC.V) 1 minute: 1000V |
Pins material: Copper alloy (gold-plated 6U) |
| Insulation resistance: ＞500MΩ |
Waterproof circle: Silica gel |
| Protection level: IP65/IP67 |
Flammability rating: UL94-V0 |
Data sheet
