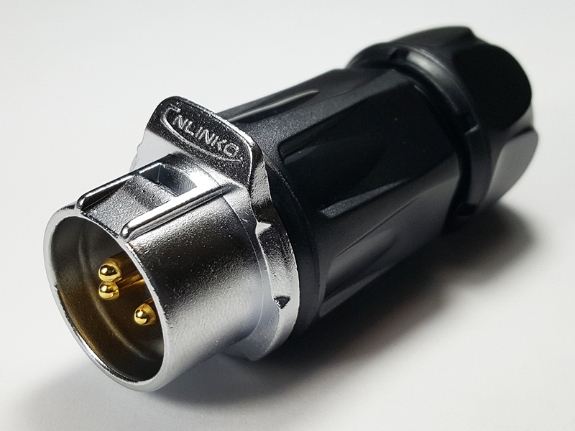

3 Pins latching male connection plug.
| Cable specification: 2.5mm²～4mm²/14～12 AWG
|
Working temperature: -40°F~176°F (-40℃～80℃)
|
| Diameter range: Φ8mm～Φ12mm
|
Connecting mode: latching
|
| Contact diameter × number: Φ2.7×3
|
Assembly wire: Solder
|
| Rated Current (A): 20A
|
Housing, the insulating parts: High-performance engineering plastics
|
| Operating voltage (AC.V.rms): 500V
|
Hardware: Zinc Alloy (pearl hard chrome)
|
| Contact resistance: <1mΩ
|
Pins material: Copper alloy (gold-plated 4U)
|
| Withstanding Voltage (AC.V) 1 minute: 2500V
|
Waterproof circle: Silica gel
|
| Insulation resistance: ＞500MΩ
|
Flammability rating: UL94-V0
|
| Protection level: IP65/IP67
|
|
Data sheet
