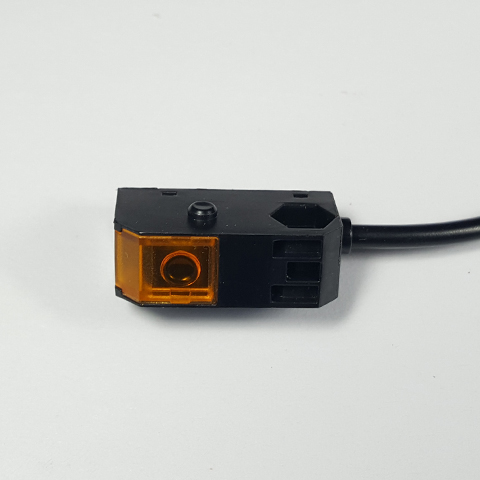

Through beam receiver
NPN NO, Sensing distance 150 cm
Output: NPN NO
|
Ambient light immunity: Incandescent lamp:3000Lx, Sunlight 10000Lx
|
Sensing mode: Through beam
|
Polarity protection:
Yes
|
Sensing distance: 150 cm ( non-adjustable )
|
Dielectric strength: 1000V/AV
50/60Hz 60s
|
Supply voltage: 12-24 VDC
|
Ambient temperature: -20...+55C
|
Light source: Infrared LED (850nm)
|
Ambient moisture: 35-95%
|
Sensing object: Opaque object φ 6mm dia. max
|
Ambient moisture: 35-95%
|
Scanning angle: 2° ~ 10°
|
Ambient moisture: 35-95%
|
| Load current: <100mA
|
Protection degree:
IP40
|
| Voltage drop: <2.5V
|
Housing metal: PC/ABS
|
Consumption current: <20mA
|
Connection: 2M PVC cable
|
Response time: <1ms
|
Certification: CE
|
| Output indicator: Red LED
|
|
