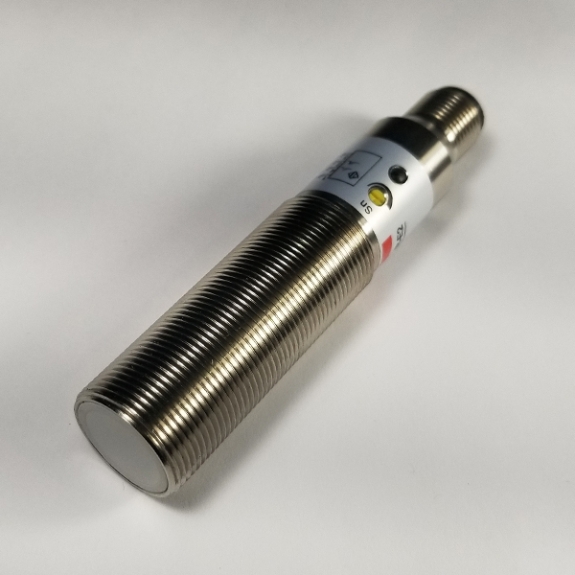

M18 Flushed capacitive sensor PNP NO/NC,
Sensing distance 5mm
| Sensing mode: Capacitive | Frequency: 50Hz |
| Output: PNP NO/NC | Output indicator: Yellow LED
|
| Type: Shielded | Polarity protection: Yes |
| Sensing distance: 5mm (adjustable) | Dielectric strength: 1000V/AC 50/60Hz 60s |
| Supply voltage: 10-30 VDC | Short-circuit protection: Yes |
| Switch point drift: <± 20% Sr | Ambient temperature: -20...+70C |
| Load current: <200mA | Ambient moisture: 35-95% |
| Voltage drop: <2.5V | Protection degree: IP67 |
Consumption current: <15mA
| Housing metal: Nickel-copper Alloy |
| Hysteresis: 3-20% | Connection: M12 connector |
| Repeat accuracy: <3% | Certification: CE, UL |
Sensor, nuts, screwdriver
