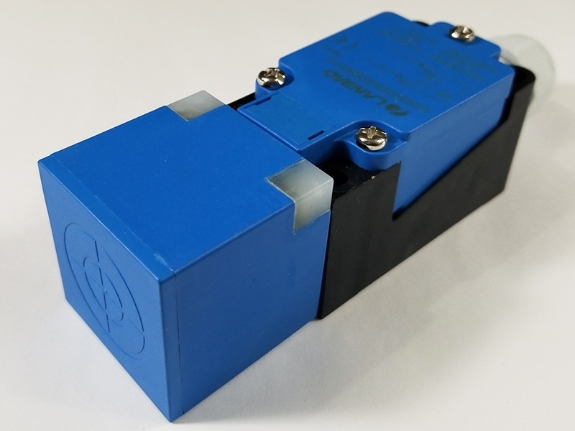

Unshielded extended sensing inductive sensor, 40mm sn. dis. with wire terminal.
Output: PNP NO NC
|
Output indicator: 2 Yellow LEDs |
Mounting: Non-flushed
|
Polarity protection: Yes
|
| Sensing distance: 40mm |
Dielectric strength: 1000V/AV
50/60Hz 60s |
Supply: voltage: 10-60 VDC
|
Short circuit protection: Yes |
Switch point drift: <±10% Sr
|
Ambient temperature: -25...+70C
|
Load current: <200mA
|
Ambient moisture: 35-95%
|
Voltage drop: <2.5
|
Protection degree:
IP67
|
Consumption current: <10mA
|
Housing metal: PBT
|
Hysteresis: 1-20%
|
Connection: Terminal connect
|
Repeat accuracy: <3%
|
Certification: CE |
Frequency: 200HZ
|
|
