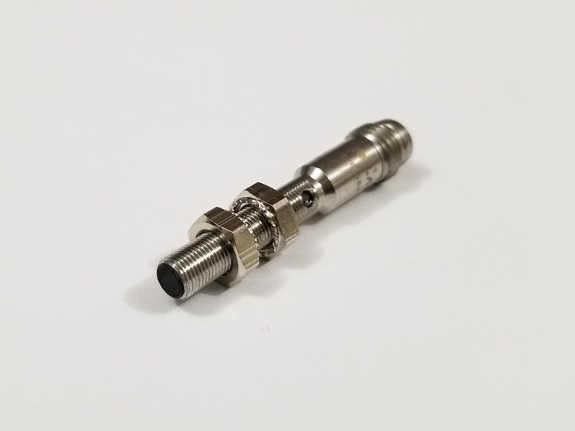

M5 Extended sensing inductive sensor PNP NO with M8 connector
Output: PNP NO
| Frequency: 1200Hz |
Mounting:
Flushed
| Output indicator: Red: LED
|
Sensing distance: 1.5mm
| Polarity protection:
Yes
|
Supply voltage: 10-30 VDC
| Dielectric strength:
500V/AV
50/60Hz 60s
|
Switch point drift:
< ±10% Sr
| Ambient temperature: -25...+70C
|
Load current: <100mA
| Ambient moisture: 35-95%
|
Voltage drop: <2.5V
|
Protection degree:
IP67
|
Consumption current: <10mA
| Housing metal: Stainless
steel
|
Hysteresis: 1-20%
|
Connection:
M8
Connector
|
Repeat accuracy: <3%
| Certification: CE
|
