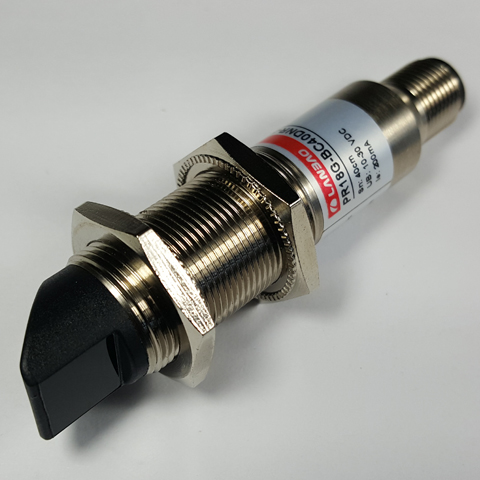

Through beam M18 receiver NPN NO/NC,
Sensing distance 20m
Output: NPN NO/NC
|
Polarity protection:
Yes |
Sensing mode: Through beam
|
Dielectric strength: 1000V/AV
50/60Hz 60s
|
| Sensing distance: 20 m ( non-adjustable ) |
Short-circuit protection: Yes
|
| Supply voltage: 10-30 VDC |
Ambient temperature: -15...+55C |
Voltage drop: <2.5V
|
Ambient moisture: 35-95%
|
Load current: <200mA
|
Protection degree:
IP65
|
Consumption current: <25mA
|
Housing metal: Nickel-copper Alloy
|
Repeat accuracy: <5%
|
Connection: M12 connector
|
Response time: <8.2 ms
|
Certification: CE, UL |
Output indicator: Yellow LED
|
|
