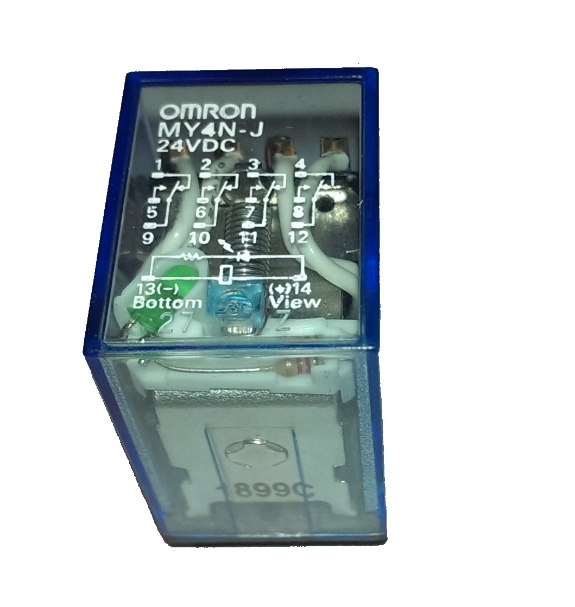

General Purpose Relay Plug-In Type 4PDT Built-In Indicator
|
Product classification: Monostable relays
Built-in LED indicator type
|
Termination Style: Plug Pin
|
|
Coil ratings: 110 VAC 9.9 mA （50 Hz）, 110 VAC 8.4 mA （60 Hz）, 120 VAC 10.8 mA （50 Hz）, 120 VAC 9.2 mA （60 Hz）
|
Mounting Style: Socket
|
|
Max. voltage: 110% (of rated voltage)
|
Maximum switching current: AC: 5 A,DC: 5 A
|
|
Contact Type: 4PDT
|
Maximum switching voltage: 250 VAC,125 VDC
|
|
Contact rated load: 250 VAC 3 A (Resistive load (cos phi = 1))
250 VAC 0.8 A (Inductive load (cos phi = 0.4))
30 VDC 3 A (Resistive load)
30 VDC 1.5 A (Inductive load (L/R = 7 ms))
|
Maximum switching power: AC: 660 VA （Resistive load (cos phi = 1)）
AC: 176 VA （Inductive load (cos phi = 0.4)）
DC: 72 VA （Resistive load）
DC: 36 VA （Inductive load (L/R = 7 ms))
|
|
Protective structure: Closed type (cover)
|
Operating time (set time): 20ms
|
|
Applicable standard: (UL) UL508, (CSA) C22.2 No.0, No.14
|
Release time (Reset time): 20 ms
|
|
Ambient temperature (Operating): -55 to 60 ℃
|
Model: MY4N
|
|
Ambient humidity (Operating): 5 to 85 %RH
|
|
