3 ways 2 positions 24 VDC valve 1/8 NPT

There are no reviews yet. | Write a review
Item #: PSV2301
Availability: Out of Stock notify me

Mfg # 3V1-10-06 NPT 1/8 24 VDC

Series: 3V
Price: $17.75
    Points to Purchase:17750
    Points Earned:178
    Bonus Points Earned:0

    • 3 ways 2 positions 24 VDC valve 1/8 NPT - PSV2301
    • 3 ways 2 positions 24 VDC valve 1/8 NPT - PSV2301

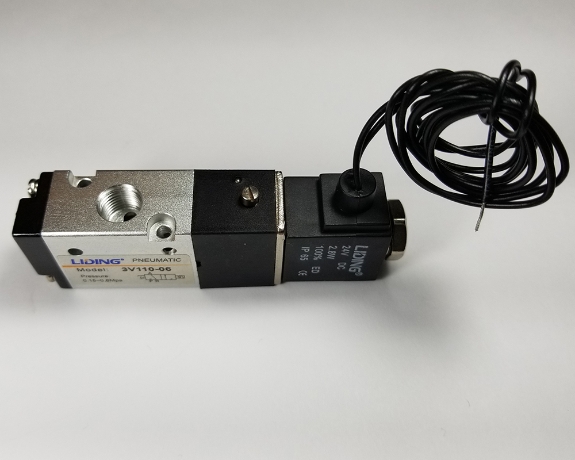

    Pneumatic directional solenoid valve 3 ways 2 positions, 24 VDC coil, 1/8 NPT female ports.

    Working medium: 40 micron filtered air
    		Power consumption: 3 W
    Motion pattern: Inner guide type
    		 Protection degree: IP 65 ( DIN40050)
    Port size: 1/8 NPT female
    		 Insulation: F
    Position: 3 ways 2 positions ( 5/2 ) Wiring form: Wire lead
    Operating temperature: 41~122F° ( 5-50°C ) Voltage range: 24 VDC ± 10% (21.6~26.4 DC Volt)
    Effective sectional area: Cv=0.67 ( 12mm² ) Highest action frequency: 5 cycles per sec.
    Working pressure: 21~116 PSI (0.15~0.8 Mpa)
    		Shortest excitation time: 0.05 second
    Max pressure resistance: 174 PSI ( 1.2 Mpa)
