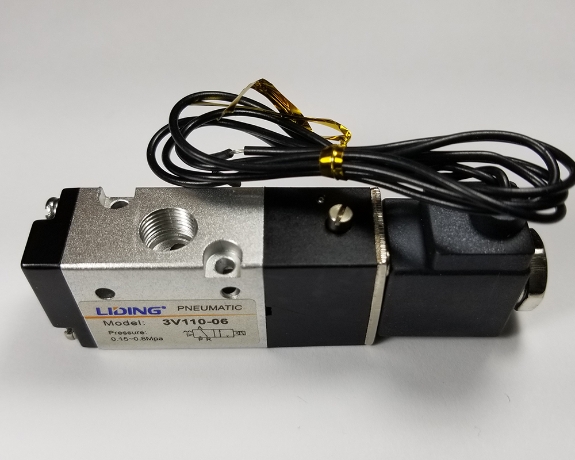

Pneumatic directional solenoid valve 3 ways 2 positions, 120 VAC coil, 1/8 NPT female ports.
Working medium: 40 micron filtered air
|
Power consumption: 4.5VA |
Motion pattern: Inner guide type
|
Protection degree: IP 65 ( DIN40050)
|
Port size: 1/8 NPT female
|
Insulation: F
|
| Position: 3 ways 2 positions ( 5/2 )
|
Wiring form: Wire lead
|
| Operating temperature: 41~122F° ( 5-50°C )
|
Voltage range: 120 ADC ± 10% (108~132 AC Volt)
|
| Effective sectional area: Cv=0.67 ( 12mm² )
|
Highest action frequency: 5 cycles per sec.
|
Working pressure: 21~116 PSI (0.15~0.8 Mpa)
|
Shortest excitation time: 0.05 second
|
Max pressure resistance: 174 PSI ( 1.2 Mpa)
|
|
