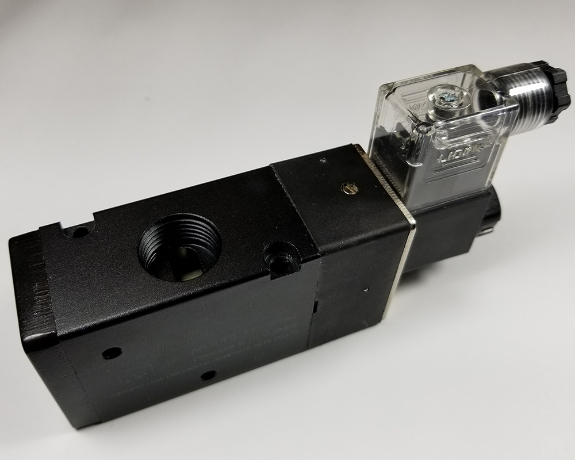

Pneumatic directional control solenoid valve 3 ways 2 positions, 24 VDC coil with LED indication, 1/2 NPT female ports.
Working medium: 40 micron filtered air
| Power consumption: 3.7 W |
Motion pattern: Inner guide type
| Protection degree: IP 65 ( DIN40050)
|
Port size: 1/2 NPT female
| Insulation: F
|
| Position: 3 ways 2 positions ( 3/2 ) | Wiring form: Connector type |
| Operating temperature: 41~122F° ( 5-50°C ) | Voltage range: 24 VDC ± 10% |
| Effective sectional area: Cv=2.79 ( 50mm² ) | Highest action frequency: 5 cycles per sec.
|
Working pressure: 21~116 PSI (0.15~0.8 Mpa)
| Shortest excitation time: 0.05 second
|
Max pressure resistance: 174 PSI ( 1.2 Mpa)
| Manifold mounting possibility: Yes, on 400 series manifold block
|
