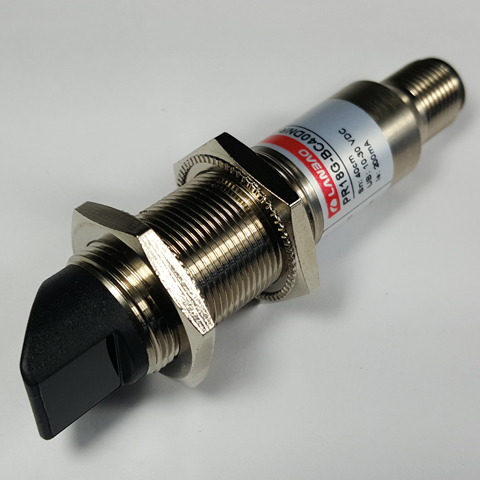

Diffuse reflective sensor
NPN NO+NC, Sensing distance 40 cm, M12
Output: NPN NO+NC
|
Output indicator:
Yellow LED
|
Sensing mode: Diffuse reflection
|
Polarity protection:
Yes
|
Sensing distance: 40 cm ( adjustable )
|
Dielectric strength: 1000V/AV
50/60Hz 60s
|
Supply voltage: 10-30 VDC
|
Short-circuit
protection:
Yes
|
Light source: Infrared LED (880nm)
|
Ambient temperature: -15...+55C
|
Load current: <200mA
|
Ambient moisture: 35-95%
|
Voltage drop: <2.5V
|
Protection degree:
IP65
|
Consumption current: <25mA
|
Housing metal: Nickel-copper Alloy
|
Hysteresis: 3-20%
|
Connection:
M12
Connector
|
Repeat accuracy: <5%
|
Certification: UL, CE
|
Response time: <8.2ms
|
|
Sensor, nuts and screwdriver for sensor adjustments
