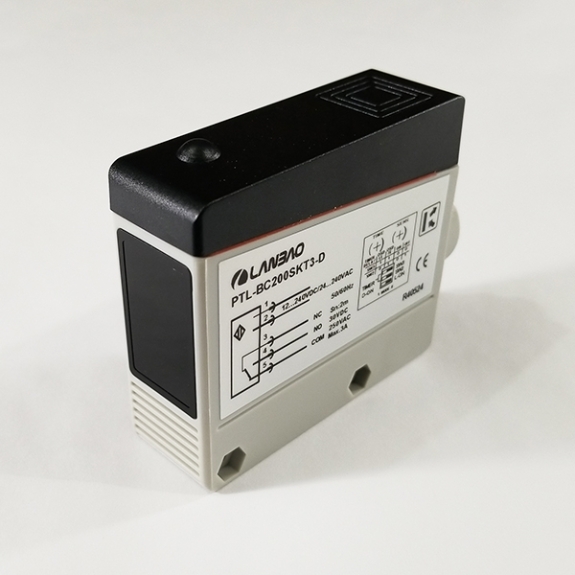

Diffuse reflective sensor
NPN NO+NC, sensing distance 2 m, wire terminal
Output: NPN NO+NC
|
Output indicator:
Yellow LED
|
Sensing mode: Diffuse reflection
|
Polarity protection:
Yes
|
Sensing distance: 2 m ( adjustable )
|
Dielectric strength: 1000V/AV
50/60Hz 60s
|
Supply voltage: 10-30 VDC
|
Short-circuit
protection:
Yes
|
Light source: Infrared LED (880nm)
|
Ambient temperature: -15...+55C
|
Load current: <200mA
|
Ambient moisture: 35-95%
|
Voltage drop: <2.5V
|
Protection degree:
IP67
|
Consumption current: <25mA
|
Housing metal: PC/ABS
|
Hysteresis: 5-20%
|
Connection: Wire Terminal
|
Repeat accuracy: <5%
|
Certification: CE
|
Response time: <8.2ms
|
|
Sensor, mounting bracket with screws and nuts
